SKIMGARD®

SKIMMING DETECTION TECHNOLOGY

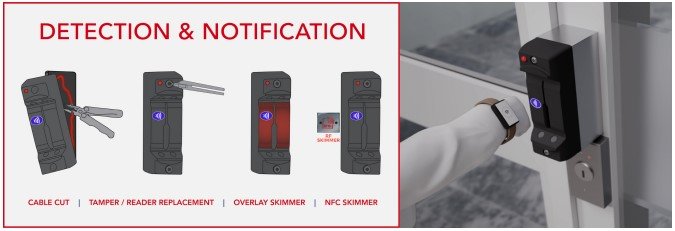

Tamper, Reader Replacement, Cable Cut, Overlay & NFC Skimmer Detection & Notification

Since inception in 1995, Parabit has been dedicated to the research and development of fundamental ATM Security products: SkimGard® technology was designed to detect most, if not all overlay skimming devices that have been discovered and investigated by FI’s and authorities. Parabit developed SkimGard® technology to provide a deterrent and viable detection sys-tem to the global skimming epidemic.

Parabit’s patented SkimGard® technology detects Reader tampering, cable cut and the installation of an overlay skimming device onto a Parabit reader with SkimGard® technology. SkimGard® integrates with all alarm panels, video recorders or ATM out-of-service inputs.

SYSTEM DETECTION

SKIMMER OVERLAY

SkimGard® technology is engineered to constantly monitor a defined area in front of the reader surface. The reader faceplate contains raised sections which provide for a mechanically difficult area to install a skimming device. When an object is placed over the card slot (for a pre-programmed time interval), an input will be activated on an existing alarm system.

TAMPER DETECTION

SkimGard® technology provides Tamper Detection on an exist- ing alarm system immediately upon the removal a Reader with SkimGard® from its installed location.

CABLE CUT

SkimGard® technology constantly monitors continuity of the card reader cable between the ACS Controller and Readers with SkimGard® technology. Once any of the Reader cables are cut, an input will be activated on an existing alarm system.

*This product is covered by U.S. Patent Nos. 8,523,072 and 8,757,488

AVAILABLE READERS WITH SKIMGARD® TECHNOLOGY

SKIMGARD® PROTECTION:

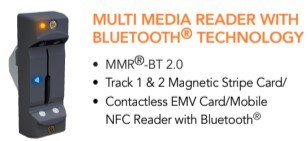

• Overlay Skimmer Detection – IMSR/MMR/MMR-BT

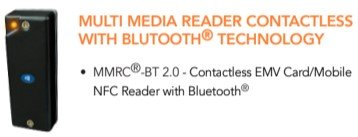

• NFC Skimmer Detection – MMR/MMR-BT/MMRC/MMRC-BT
• Flush Mount Weather Resistant Construction:
• High Impact Polycarbonate – MMR/MMR-BT/MMRC/MMRC-BT

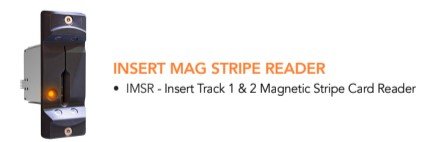

• Cast Aluminum/Stainless Steel – IMSR
